TB77 Bill Acceptor

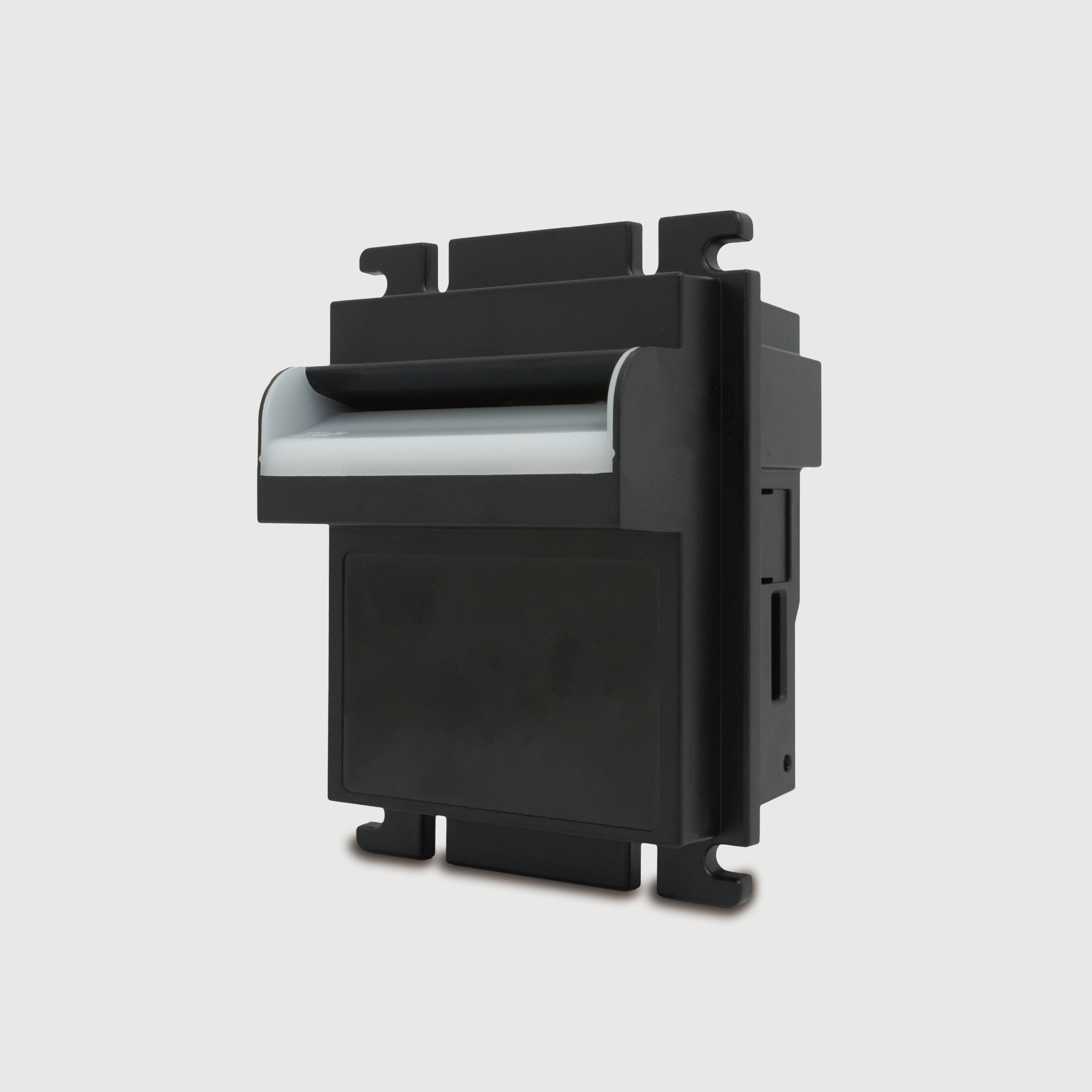

TB77 Bill Acceptor - U Cover
Overview
The TB-Series is the latest generation of banknote reader designed exclusively by TOPVME with the highest safety and acceptance rate of over 96%. The new identification method and identification technology are improved to provide users with the most complete functions.
Applications
- Gaming Machine
- Massage Chair
- Washing Machine
- Dryer
- Washeteria
- Auto-Payment Machine
- Vending Machine
Features
- Accept bills on all sides
- High banknote acceptance rate
- High security mechanism design
- Support multiple communication protocols
- Lightweight and easy to use
- Easy maintenance
Product Information
General
- Acceptance Rate: 96% or greater
- Transaction Time: Approx. 1.5 ~ 2 seconds
- Interface:Pulse / TOP101、 Pulse / RS232 or Pulse /ccTalk or Pulse / 003
- Installation Site: Indoor
- Bill Insertion: Four way acceptable
Electronic
- Power Source: 12V DC ± 10%
- Power Consumption:
Standby: 0.1A ~ 0.16A (1.2W ~ 1.9W)
Operation: 0.5A (6W)
Maximum: 1.2A (14.4W) - Temperature Range:
Operation Temperature: 0°C ~ 60°C
Storage Temperature: -10°C~80°C
Humidity: 20%~70% RH
(no condensation)
Mechanical
- Cash Box: N/A
- Weight: 310g ± 10g
- Outline Dimension: 98 x 134 x 85mm
- Bill Accepted Width: 62mm ~ 77mm
DM／Manual
Currencies accepted and DipSetting
pdf
TB77_DipSetting_China_RMB61-100_RS232_106U_JU-30-50-50-100_Always_1pulse_per_1
China-2
Size:
126.48 KB
Coming soon…
