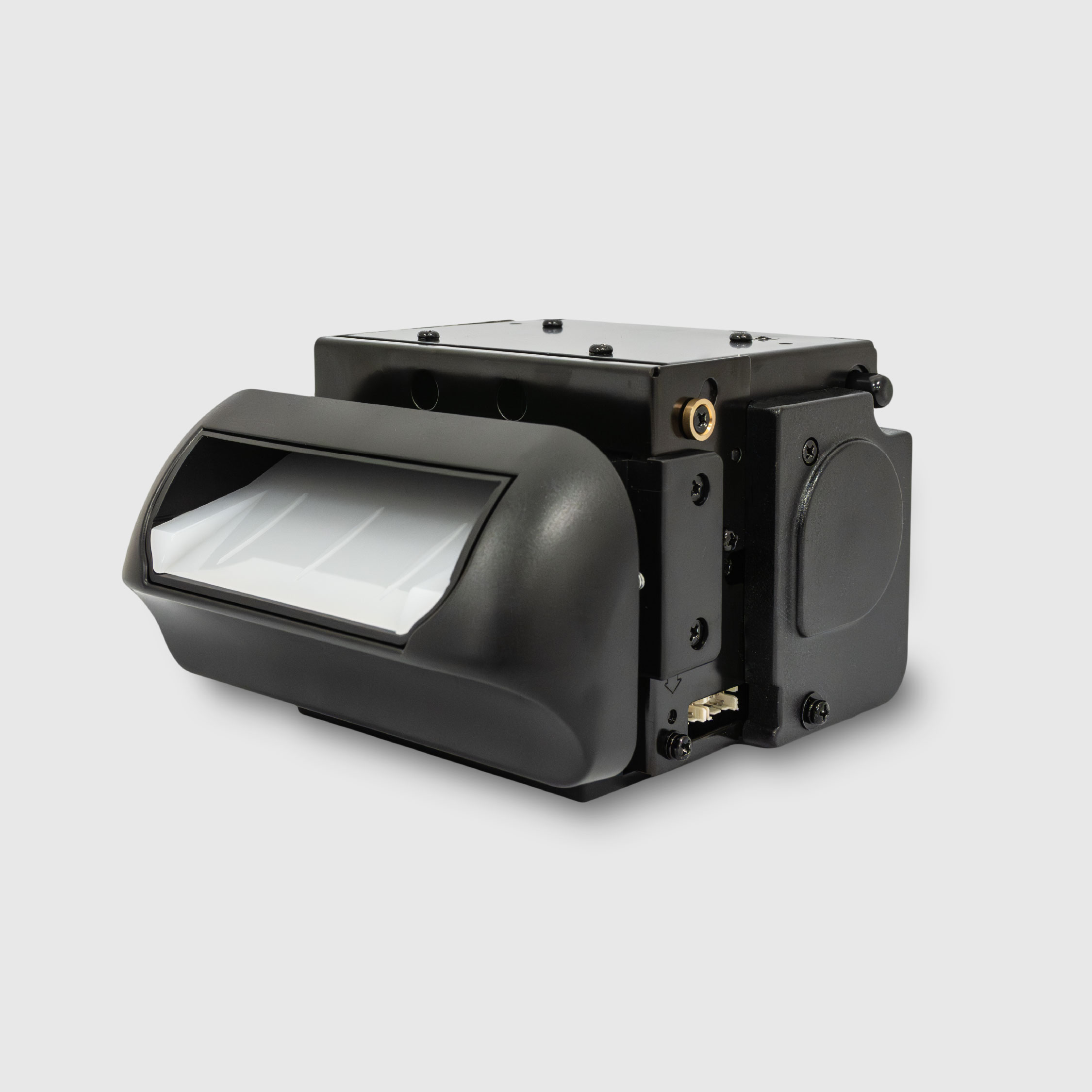

TP83 Bill Acceptor
Overview
TP series is a new generation of bill acceptor designed by TOPVME which features High-security with acceptance rate up to 96%. In addition,multiple bezel and bill box selections offer users the most convenient and complete services.
Applications
- Gaming Machine
- Massage Chair
- Washing Machine
- Dryer
- Washeteria
- Auto-Payment Machine
- Vending Machine
Features
- Four ways bill insertion acceptance
- Hight acceptance rate
- Multiple bezel selections
- High security by protective mechanism
Product Information
General
- Acceptance Rate: 96% or greater
- Interface: Pulse / RS232、
Pulse / ccTalk、Pulse / TOP101 - Installation: Indoor
- Bill Insertion: Four way acceptable
Electrical
- Power Source: 12V DC ± 5%
- Power Consumption:
Standby: 350 mA / 4.2W
Operation: 2A / 24W - Temperature Range:
Operating Temperature: 0°C ~ 60°C
Storage temperature: -10°C ~ 80°C
Humidity: 20% ~ 70% RH
(no condensation)
Mechanical
- Weight: Approx. 0.70kg
- Outline Dimension: 105 x 125 x 133 mm
- Cash Box: N/A
- Bill Accepted Width: 68 ~ 83 mm
DM／Manual
Currencies accepted and DipSetting
Under Construction
